AI-Powered Intelligent Safety Driving System for Low-Speed Vehicles
Smart and Safe Forklift Management Solution

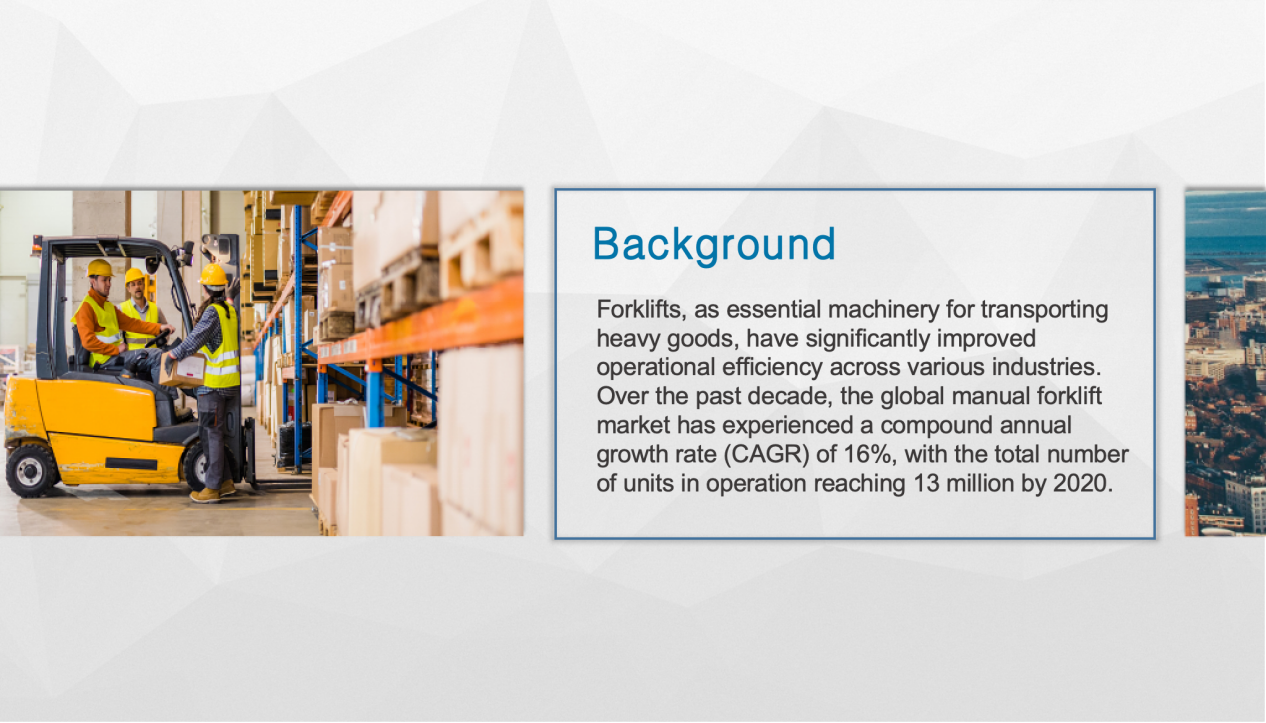

Current State
Forklifts, as essential machinery for transporting heavy goods, have significantly improved operational efficiency across various industries. Over the past decade, the global manual forklift market has experienced a compound annual growth rate (CAGR) of 16%, with the total number of units in operation reaching 13 million by 2020.
Hardware Overview – Waterproof & Impact-Resistant Design
Built with a combination of die-cast aluminum, PC, ABS, and nylon materials, the device is compact yet highly durable. It meets IP67 protection standards and is drop-resistant up to 2 meters, making it ideal for outdoor use — rainproof, rugged, and hard to damage.
Waterproof & Impact Resistance
- IP67-rated waterproofing
- 2-meter drop resistance
- Compact and lightweight design
- Engineered for harsh outdoor environments and high durability

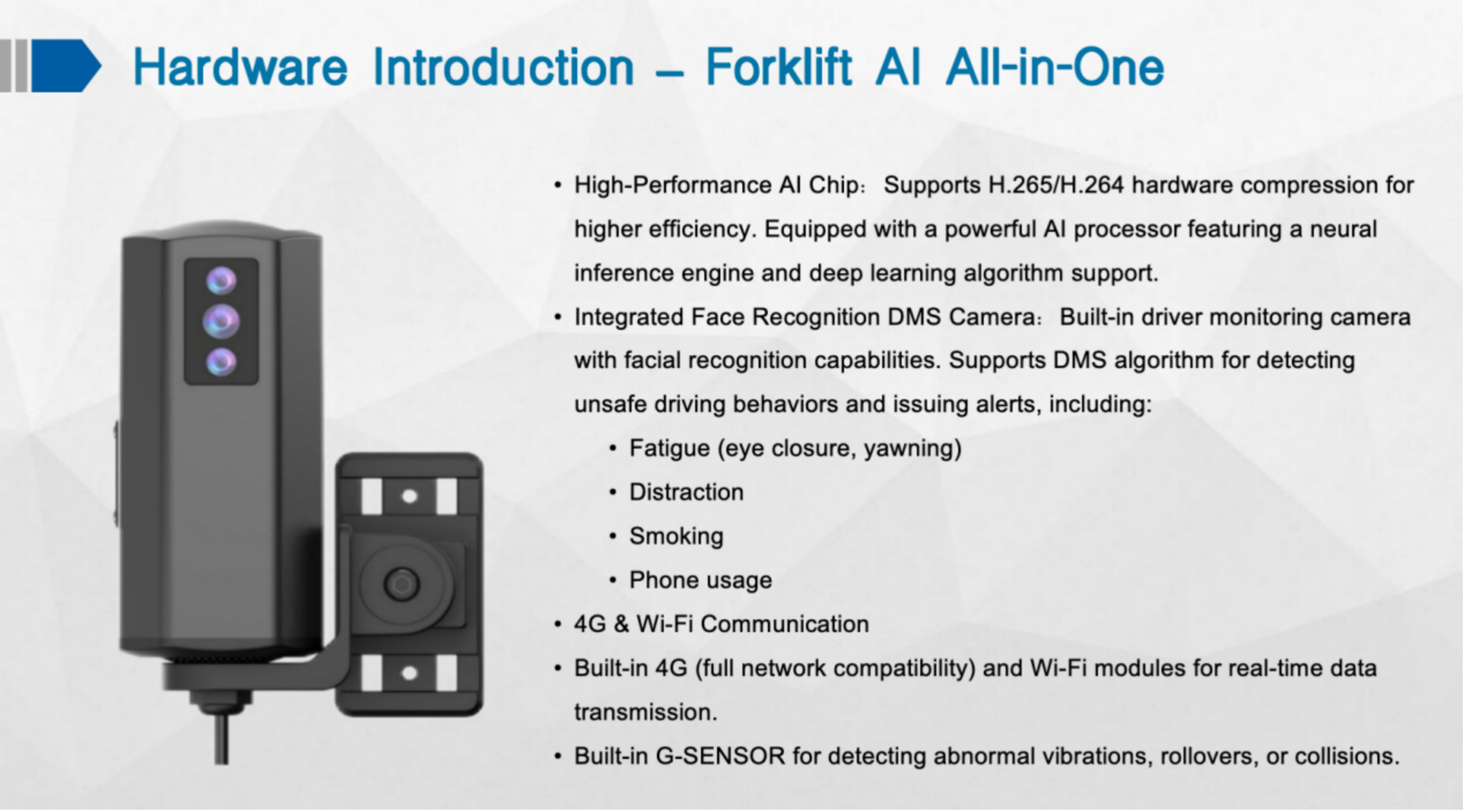

Hardware Introduction – Forklift AI All-In-One Unit
A forklift-specific DMS (Driver Monitoring System) AI host, designed to meet intelligent safety and management needs.
⸻
Key Features:
1.High-Performance AI Chip
Supports H.265/H.264 hardware compression for higher efficiency.
Equipped with a powerful AI processor featuring a neural inference engine and deep learning algorithm support.
2.Integrated Face Recognition DMS Camera
Built-in driver monitoring camera with facial recognition capabilities.
Supports DMS algorithm for detecting unsafe driving behaviors and issuing alerts, including:
- Fatigue (eye closure, yawning)
- Distraction
- Smoking
- Phone usage
3.Alerts are uploaded to the central monitoring platform.
4.4G & Wi-Fi Communication
- Built-in 4G (full network compatibility) and Wi-Fi modules for real-time data transmission.
- Compatible with national standards, supports multi-platform data reporting and transmission.
- G-Sensor for Vehicle Rollover Detection
5.Built-in G-SENSOR for detecting abnormal vibrations, rollovers, or collisions.
Triggers automatic alarm and data upload.
- TF Card Video Recording
6.Supports TF card storage, up to 512GB capacity.
Enables long-duration local video recording.
- Built-in Microphone & Speaker
7.Supports audio alerts, voice dispatch, remote listening, and two-way intercom communication.

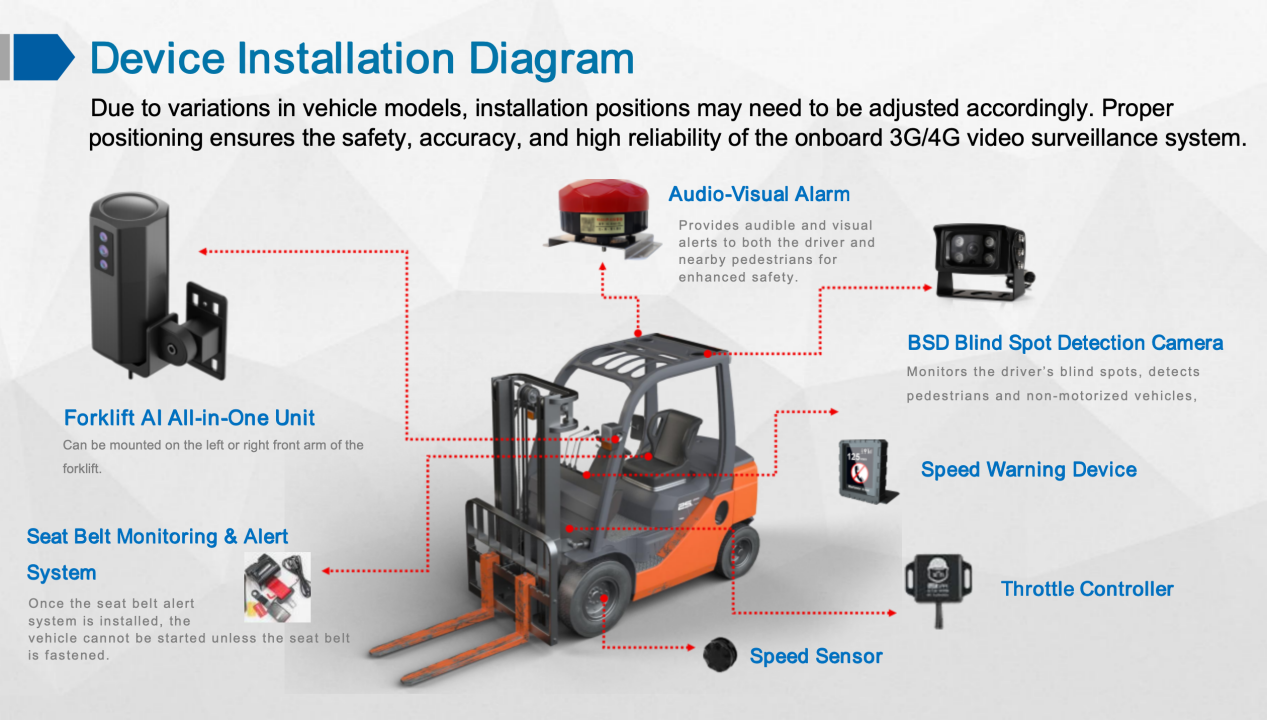

Device Installation Diagram
Due to variations in vehicle models, installation positions may need to be adjusted accordingly. Proper positioning ensures the safety, accuracy, and high reliability of the onboard 3G/4G video surveillance system. Final installation locations should be determined based on vehicle conditions and specific customer requirements.
Forklift AI All-in-One Unit
Specifically engineered for forklift applications with a rugged design that meets waterproof and impact-resistant standards. Can be mounted on the left or right front arm of the forklift.
Equipped with a versatile mounting base compatible with both square and round tube columns.
Authorized Operation – Facial Recognition
Before operating the vehicle, personnel must undergo real-name authentication through facial recognition. The system utilizes advanced computer vision technology to extract facial feature points from video feeds and perform intelligent analysis.
This ensures that only authorized drivers can operate the vehicle, effectively preventing job swapping, unauthorized use, and driver substitution.
Built on an integrated attendance management system, it helps enforce compliance, eliminate unauthorized operations, and strengthen overall driver and fleet management.

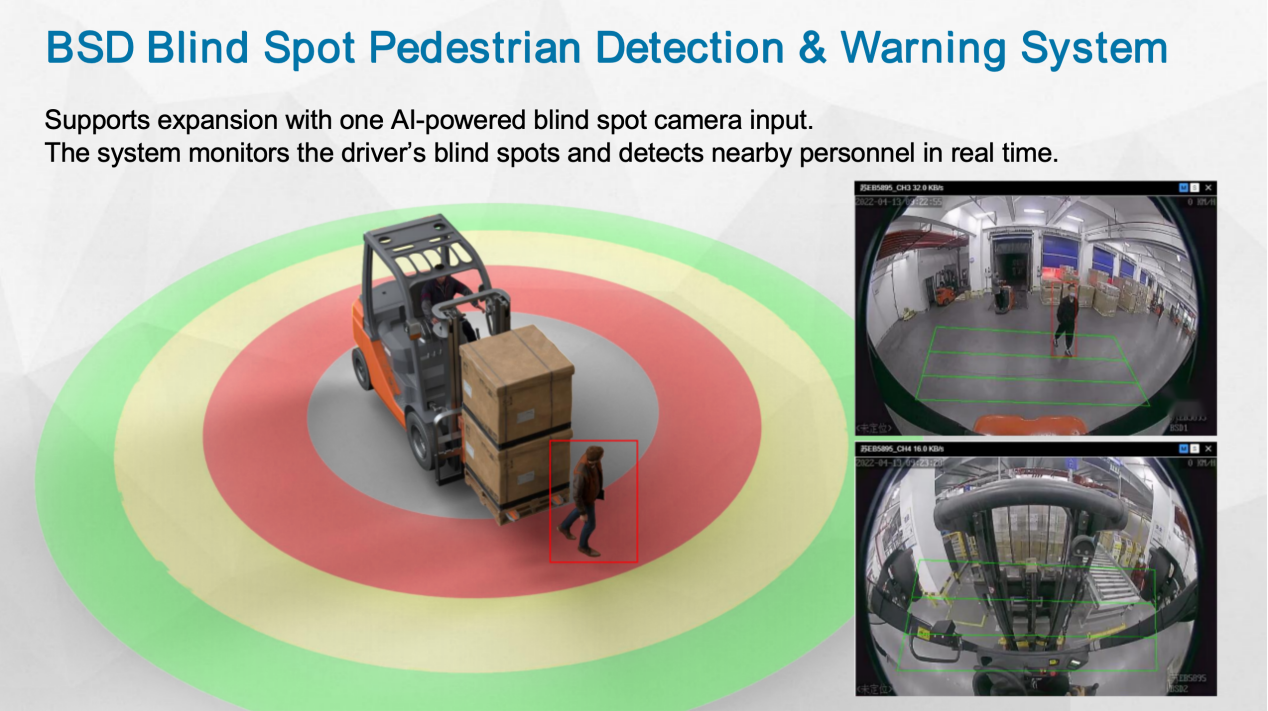

BSD Blind Spot Pedestrian Detection & Warning System
Supports expansion with one AI-powered blind spot camera input.
The system monitors the driver’s blind spots and detects nearby personnel in real time.
When a person enters the detection zone, the system issues tiered warnings (audio-visual alerts). If the individual approaches the collision zone, the forklift will automatically brake and stop (when integrated with the throttle controller), effectively preventing accidents and enhancing operational safety.

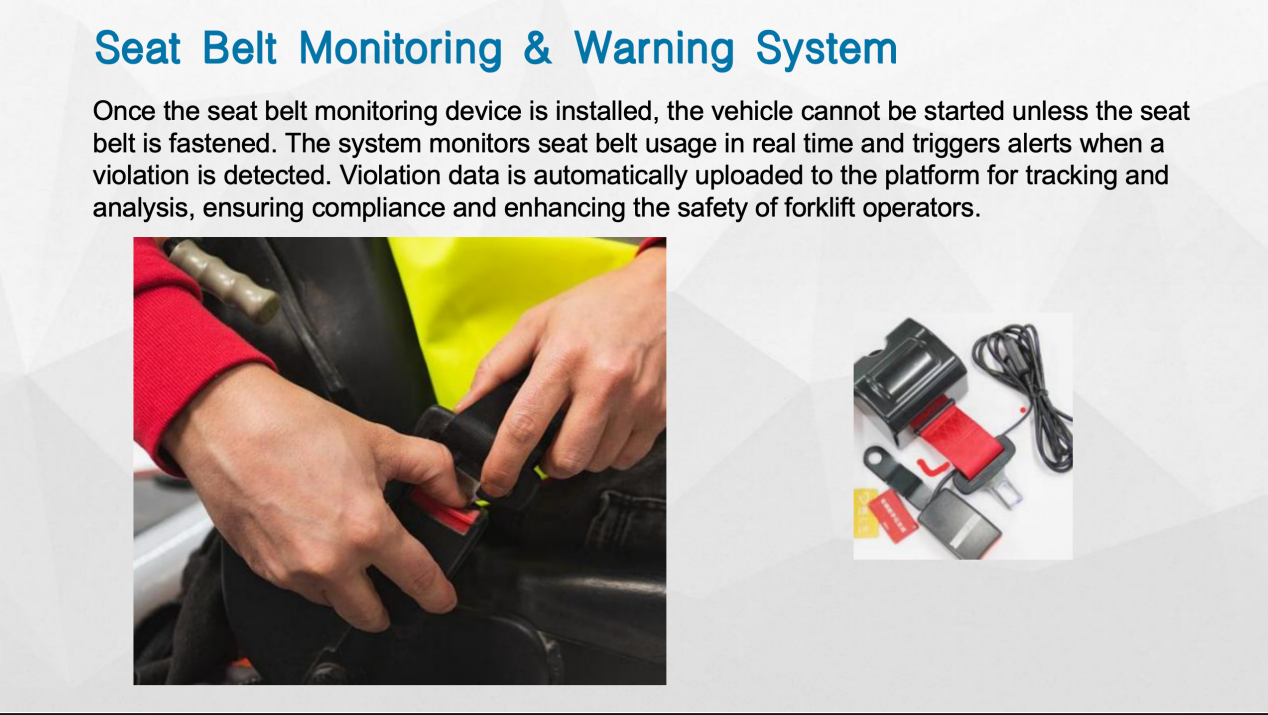

Seat Belt Monitoring & Warning System
Once the seat belt monitoring device is installed, the vehicle cannot be started unless the seat belt is fastened.
The system monitors seat belt usage in real time and triggers alerts when a violation is detected.
Violation data is automatically uploaded to the platform for tracking and analysis, ensuring compliance and enhancing the safety of forklift operators.
